Overview

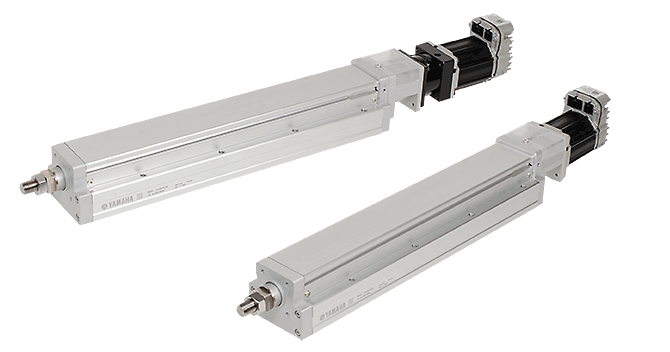

Series ECFA Electric Ball Screw Cylinders
are an economical, high-performance rod-style actuator designed for precision and reliability. Featuring a built-in linear guide to minimize rotational play and provide superior rod support. The ECFA is available as a complete solution with an optional Teknic ClearPath® MC series motor, power supply, and cabling—all assembled and supported by PHD. The Series ECFA delivers superior output and value compared to similar robot positioners.
Advantages
The ECFA features a built-in linear guide to minimize rotational play and provide superior rod support, it includes a class C7 ball screw in 5-, 10-, and 20-mm leads. The ECFA a complete cylinder solution with an optional Teknic ClearPath® MC series motor, power supply, and cabling—all assembled and supported by PHD. With simple top-through and bottom-tapped mounting options, easy-access lubrication ports for extended life, and an optional power-off brake for safety, the ECFA delivers superior output and value in comparison to similarly priced integrated stepper solutions.
