PHD is a leading manufacturer of electric, pneumatic and hydraulic industrial automation actuators,
designed to help companies across all industries optimize their manufacturing processes. Our
products consist of a full line of cylinders, escapements,
grippers, linear slides, rotary actuators, clamps, multi-motion actuators, switches
and sensors.
These actuators provide the fundamental motion to push, pull,
lift, rotate, turn, grip, reach, clamp, hold, position, escape, insert, load, unload,
pick, place, and orient parts or materials in your manufacturing processes. Applications
include loading/unloading, assembly, packaging, workholding, positioning, material
handling, orienting and feeding.
|
|
more >> |
|
New PHD ESK/ESL & ESG
Electromechanical Slide Video...
The PHD Plus Series ESK/ESL Slide and Series ESG Slide video provides an overview of key features and benefits. The Series ESK/ESL Slide, an electromechanical cantilever style actuator, and the Series ESG Slide, an electromechanical gantry style actuator, both feature precision ground guide shafts and ball bushings for smooth, accurate linear motion. These slides are available in three sizes with a choice of two high precision ball screws per size optimized for high speed or high thrust applications. Travels are available up to 700 mm on the ESK/ESL Slide and up to 900 mm on the Series ESG Slide. PHD Plus slides feature Your Motor, Your Way – a configurable system that allows the customer to easily power the unit with the motor and controls of their choice. Motors are mountable in an inline or foldback configuration. Contact PHD for more PHD Plus information.
View New PHD ESK/ESL & ESG Video >>>

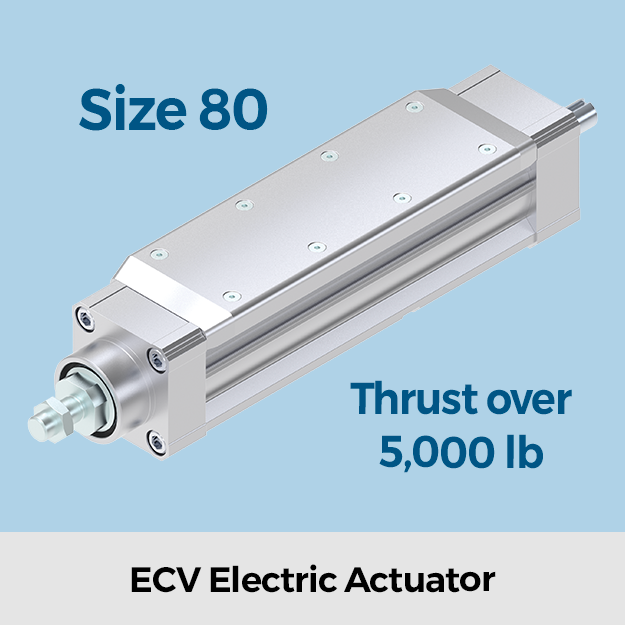

New PHD ECV
Electromechanical Cylinder Video...
The PHD Plus Series ECV Electromechanical Cylinder video is an overview of its features and benefits. The ECV Cylinders are electromechanical rod style actuators with an ISO/VDMA mounting interface, available in three sizes with a choice of two high precision ball screws per size optimized for high speed or high thrust applications. Travels are available up to 1000 mm. A large choice of cylinder mounting accessories is available to simplify machine design.

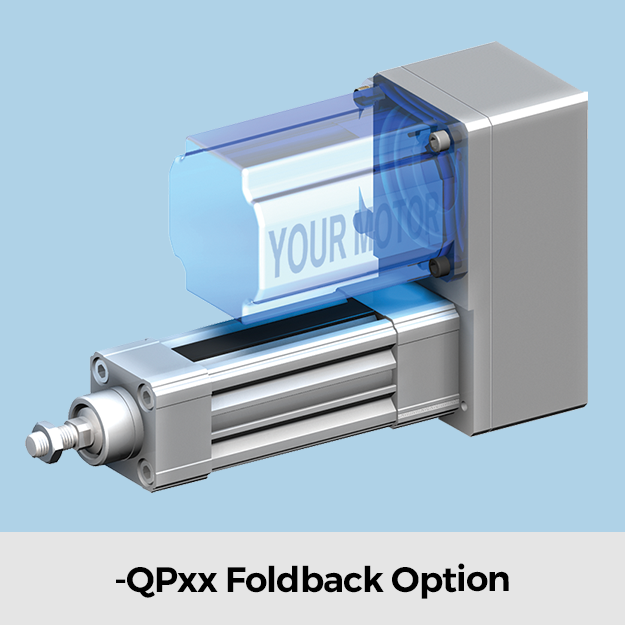

This actuator also features Your Motor, Your Way- a configurable system that allows the customer to easily power the unit with the motor and controls of their choice. Motors are mountable in an inline or foldback configuration.
The ECV Cylinders can be used to drive ESK, ESL, and ESG thruster and gantry style slides as well. Contact PHD for more PHD Plus information.
View New PHD ECV Video >>>
|
|
|
|
Series ECVA
|
|
|
New Series ECV Electric Cylinder with the "Your Motor, Your Way" feature provides an open architecture design allowing users to specify the motor and controls of their choice. Key features include choice of inline or foldback motor mounting. Online sizing and configurator provides ease of cylinder selection and motor specification for all major motor manufacturers. Precision rolled ballscrews are offered in two leads for optimizing cylinder speed or thrust performance. Shock pads on both extend and retract provide protection from extreme end of stroke impacts. Available in 3 sizes with stroke lengths up to 1000mm and a large choice of cylinder mounting accesories to optimize machine design.
|
|
|
|
|
product detail tabs >> |
|
 PHD Electric Sizing Application!
Highlights:
- Newest electric products included (ECV, ESK/ESL, ESG)
- New guided wizard interface.
- Creates interactive profile graphs.
- Generate PDF reports of results.
|
|
New 3D PDF Personal Product Spec Sheet!
The Personal Product Spec Sheet will be included with every CAD request.
Benefits of the new 3D PDF:
- Shows the ordering data.
- Shows Distributor contact information.
- Includes a 3D pdf of the exact features on the ordering data that users can rotate and view that don't have CAD systems. Perfect for sharing with decision makers and purchasing.
- Includes benefits & delivery information.
|
|
|
|
|
- One location for the latest CAD drawings
- Native CAD models available
- Select from an extensive list of file
formats
- Request models in Open/Extend or Closed/Retract positions
- Quick delivery of CAD Models
- Provides accurate sizing of PHD Products.
- Available in three languages
- Product videos, animated application design examples, and guided tours of our eTools design software.
- Calculates the Cv and SCFM airflow
ratings for PHD actuators
|
|
