Collar Clamps - Series TCC Tooling Components

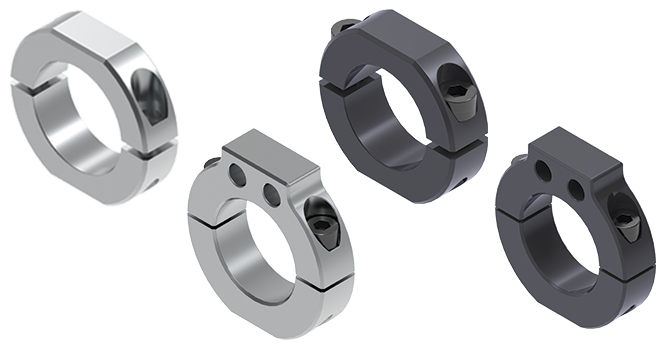

Collar Clamp

Overview

Collar Clamps are for securing the modular tooling components such as arm clamps and tubes to the receiver adapters. They feature a 1.750 inch ID and utilize two 8 mm socket head cap screws for superior clamping force. PHD provides assistance with your tri-axis press needs, whether it is individual components, system design, full build, implementation, or improvements to existing operations.

Advantages

Provides superior strength, support, for securing tooling systems. The design includes a flat top for etching of the job and assembly number and holes for the secure routing of air lines. Tri-axis Tooling Components combined with the industry-leading PHD Series GRM family of automated sheet metal handling clamps now provide a total solution delivering superior performance to your high-speed tri-axis transfer presses.

Benefits
