Aluminum Extension Tubes - Series TAT Tooling Components

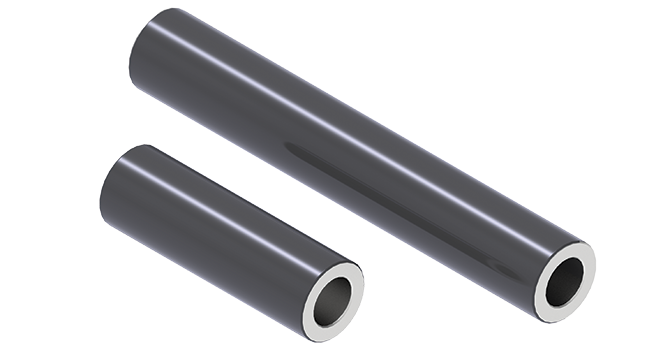

Tubing

Overview

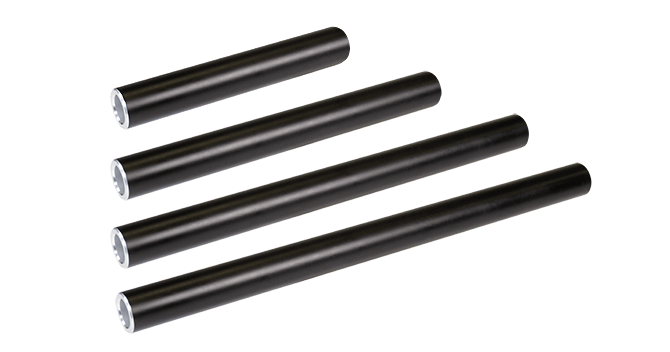

Aluminum Extension Tubes are for the combination of other modular tooling components, such as arm clamps and tubes, in parallel, perpendicular or rotational orientations. They are available in 4 standard lengths from 6 to 24 inches in 6 inch increments with 1/4 inch wall thickness providing superior strength and support. PHD provides assistance with your tri-axis press needs, whether it is individual components, system design, full build, implementation, or improvements to existing operations.

Advantages

Provides superior strength, support, and flexibility for tooling systems. Tri-axis Tooling Components combined with the industry-leading PHD Series GRM family of automated sheet metal handling clamps now provide a total solution delivering superior performance to your high-speed tri-axis transfer presses.

Benefits

Sizing Icon






Application Assistance
