Series ORQ rotary-actuators

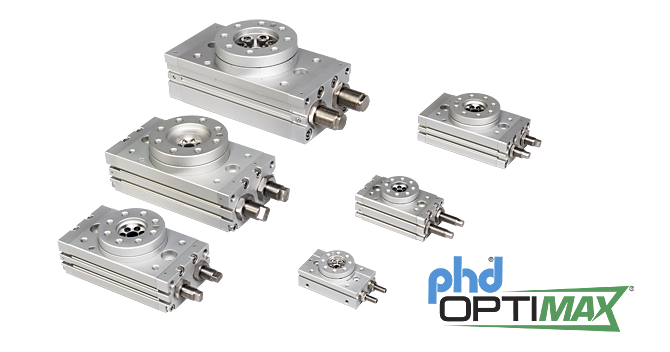

Series ORQ Pneumatic Compact Rotary Table


The PHD Optimax® Series ORQ Pneumatic Compact Rotary Table features a double rack and pinion system providing increased output torque while eliminating backlash at the end of rotation. The Series ORQ has drop-in metric mounting to match the global standard, and is available in 6 bore sizes.


Double rack and pinion, 6 sizes, Standard angle adjustment screws, internal shock pads, drop-in replacement
