Process Type

Product Type

2

2" Bore Feeder Cylinder - ML310261

  • Robust design for long life
  • Drop-in replacement of OEM feeder
  • Feeds alumina on modern pot technology
  • Available with switching technology
  • Tags: None
4

4" Bore Crust Breaker Cylinder - ML311325

  • Drop-in 5" bore for greater thrust
  • Unique seals and rod bushing for high temperature and low friction
  • Designed for older pot technology found in the United States
  • Tags: None
8

8" Bore Crust Breaker Cylinder - ML311167

  • Rugged design
  • 80% air savings potential
  • Will not ingest alumina dust
  • Onboard valve-manifold eliminates external pneumatic communications
  • Tags: None
Blanket Wash Cylinder - ML310456

Blanket Wash Cylinder - ML310456

  • Drop-in replacement for a Heidelberg blanket wash cylinder
  • Rod can be on either side
  • Long life seals and bushings
  • Tags: None
Case Erector Cylinder - ML308600

Case Erector Cylinder - ML308600

  • Direct drop-in to existing competitor unit
  • Mounts into the same space and bolt pattern as FABCO Pancake Cylinder
  • Longer life to reduce downtime
  • Tags: None
Chain Tension Cylinder - ML309911

Chain Tension Cylinder - ML309911

  • Drop-in replacement for a Univer K200-050-0200 FM unit

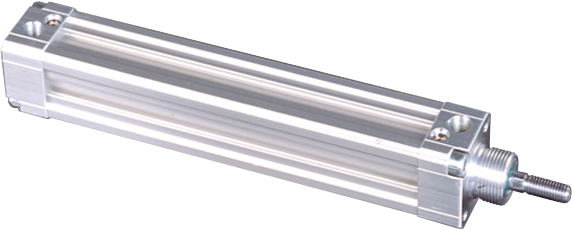

  • Constructed with Series CV Pneumatic ISO Cylinders
  • Double power
  • Tags: None
Chock Lock Cylinder - ML305875

Chock Lock Cylinder - ML305875

  • Long life design for low maintenance
  • Custom mount flange
  • Field repairable
  • Tags: None
Compact Cylinder - ML303340

Compact Cylinder - ML303340

  • Pneumatic door lock cylinders
  • Switch ready
  • Single-acting with spring on extend
  • Tags: None
Cylinder with PET Plastic Body and Stainless Steel Piston Rod - ML310898

Cylinder with PET Plastic Body and Stainless Steel Piston Rod - ML310898

  • Switch ready
  • Fluoroestomer seals
  • Compact design
  • Tags: None
Diverter Cylinder for Garment Sorting - ML306345

Diverter Cylinder for Garment Sorting - ML306345

  • Drop-in replacement for competitor units
  • Repairable
  • Threaded mountings
  • Tags: None
Diverter Cylinder for Garment Sorting - ML310223

Diverter Cylinder for Garment Sorting - ML310223

  • Used to divert clothing on overhead conveyors
  • Drop-in replacement for Watson units
  • Long life
  • Tags: None
Double Power Series CV Cylinder for Elevator Lift

Double Power Series CV Cylinder for Elevator Lift

  • Rod seal retention ring for extreme applications
  • Increased piston seal retention for high speed applications
  • Design to incorporate non-PHD Rodlok (customer supplied)
  • Tags: None
Drain Cylinder - ML307798

Drain Cylinder - ML307798

  • Drop-in replacement for Ellis units
  • Fully field-repairable
  • Field tested with longer life
  • Tags: None
Drain Cylinder - ML311696

Drain Cylinder - ML311696

  • Drop-in replacement for Braun units
  • Fully field repairable
  • Long life
  • Tags: None
Drain Cylinder - ML312115

Drain Cylinder - ML312115

  • Drop-in replacement for Ellis units
  • Fully field repairable
  • Field tested with longer life
  • Tags: None
Electric Variable Pick Head - ML306008

Electric Variable Pick Head - ML306008

  • Ideal for final packaging process
  • Motor driven pitch
  • Seven vertical pneumatic actuators
  • Tags: None
Food Grade Cylinder - ML304096

Food Grade Cylinder - ML304096

  • Complete stainless steel cylinder with stainless steel cover
  • Valve attached to cylinder
  • Stainless steel cover protects the valve from caustic washdown
  • Tags: None
Gate Cylinder - Back-to-Back AV2 Cylinder

Gate Cylinder - Back-to-Back AV2 Cylinder

  • Operates the dryer door
  • Drop-in for Tec Dryer Series 80 unit
  • Field repairable
  • Tags: None
ISO Cylinder with Bolt on Flange Trunnion Mounting for Tire Transfer - ML307574

ISO Cylinder with Bolt on Flange Trunnion Mounting for Tire Transfer - ML307574

  • Built-in shock pads are standard on all sizes, absorbing impact energy and eliminating metal to metal contact
  • Standard alloy steel and optional corrosion resistant stainless steel piston rods are hard chrome plated for maximum life and durability
  • Tags: None
ISO Series Adjustable Center Trunnion Mount Cylinder for Tire Transfer - ML310107

ISO Series Adjustable Center Trunnion Mount Cylinder for Tire Transfer - ML310107

  • Adjustable and fixed trunnions available for 32 - 100 mm bored
  • Built in shock pads
  • Cushions available
  • Corrosion resistance available
  • Tags: None
ISO/VDMA Pneumatic Cylinder - ML 302733

ISO/VDMA Pneumatic Cylinder - ML 302733

  • 3/8NPT ports in position 1
  • 25mm rod with 7/16-14 female rod thread
  • Tags: None
Impression Cylinder - ML310417

Impression Cylinder - ML310417

  • Drop-in replacement for a Speedmaster Heidelberg press unit
  • Back-to-back
  • Long life and consistent response speed
  • Tags: None
Impression Roll Actuator - ML310595

Impression Roll Actuator - ML310595

  • Drop-in replacement for Rotoman unit
  • Long life and consistent speed
  • Back-to-back
  • Tags: None
Large Flange Drain Cylinder - ML307675 & ML312728

Large Flange Drain Cylinder - ML307675 & ML312728

  • Drop-in replacement for Lavatec units
  • Fully field-repairable
  • Designed for long life
  • Tags: None
Needle Cylinders - Various MLs

Needle Cylinders - Various MLs

  • Drop-in replacement for competitor unit
  • Mounts into the same space and bolt patterns
  • Longer life, reduces downtime
  • Tags: None
Open Pocket Door Lock Cylinder - ML312117

Open Pocket Door Lock Cylinder - ML312117

  • Drop-in replacement for Lavatec units
  • High-performance seals for increased life
  • Designed for long life
  • Tags: None
Open Pocket Drain Cylinder - ML306780

Open Pocket Drain Cylinder - ML306780

  • Special industry coating
  • Repairable
  • Field tested with longer life
  • Drop-in replacement for Jensen units
  • Tags: None
Open Pocket Drain Cylinder - ML311559

Open Pocket Drain Cylinder - ML311559

  • Drop-in replacement for Jensen units
  • Fully field repairable
  • Designed for long life
  • Tags: None
Open Pocket Rotary - ML 310566

Open Pocket Rotary - ML 310566

  • Drop-in replacement for Braun units
  • Fully field repairable
  • Heavy duty
  • Tags: None
PVC Cylinder - ML311080

PVC Cylinder - ML311080

  • All PVC construction
  • Fluoroelastomer seals
  • Gas chamber solution
  • Tags: None
Pick Head - ML304240

Pick Head - ML304240

  • Six bore slide block
  • Valve manifolded cylinder body assembly
  • Front pickhead assembly
  • Vacuum plate attached to end slide assemblies
  • Tags: None
Pin (Snugger) Cylinder

Pin (Snugger) Cylinder

  • Compact, single acting
  • Long life
  • Custom pin height to fit your specific requirement
  • Electroless nickel body, corrosion resistant
  • Tags: None
Plastic Cylinder - ML308000

Plastic Cylinder - ML308000

  • FDA-approved material
  • FDA-compliant plastic and stainless steel components
  • Stainless steel hardware/fasteners
  • Stainless steel piston rod
  • Tags: None

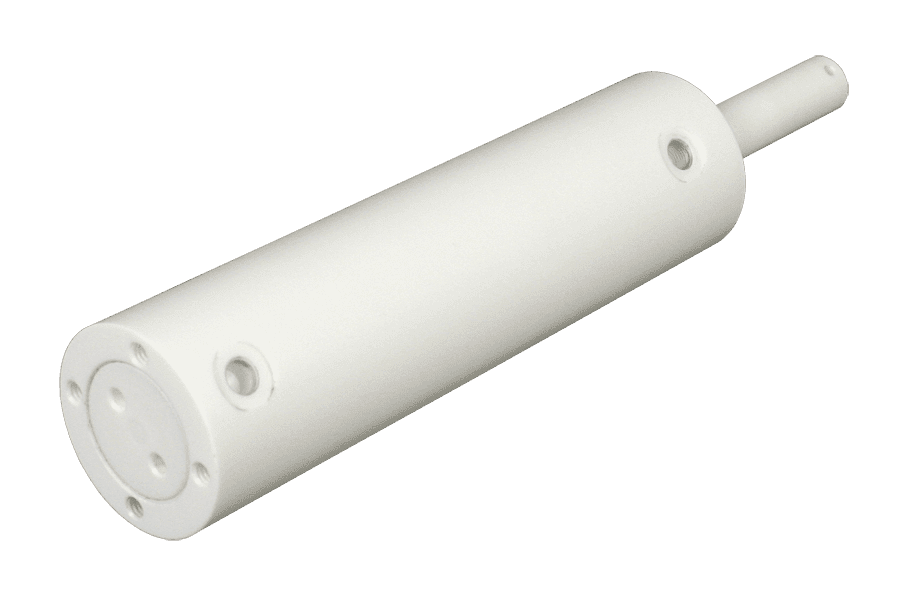

Plastic Cylinder - ML308838 & 309338

Plastic Cylinder - ML308838 & 309338

  • Designed for part production in a deionized water environment
  • Fully field repairable
  • Simple design, long life
  • Constructed of 100% PET plastic
  • Tags: None
Plastic Cylinder with Hollow Rod - ML310600

Plastic Cylinder with Hollow Rod - ML310600

  • Double hollow rod for vacuum
  • Chrome-plated piston rod
  • Light weight
  • Tags: None
Plastic PET Body - Single Acting Volumetric Pump - ML305001

Plastic PET Body - Single Acting Volumetric Pump - ML305001

  • Designed to be compatible with deionized water
  • Single acting motion - material is dispensed with each piston stroke
  • Constructed of 100% corrosion-resistant PET plastic and stainless steel
  • Tags: None
Pocket Latch Cylinder - ML309302 & ML309303

Pocket Latch Cylinder - ML309302 & ML309303

  • Drop-in replacement for Heidelberg P15 perfect binder unit
  • Actuates the bindery pocket
  • Long life and consistent speed
  • Tags: None
Polymer PET Plastic Cylinder - ML308838

Polymer PET Plastic Cylinder - ML308838

  • Designed for part production in a deionized water environment
  • Fully field repairable
  • Simple design, long life
  • Clean room lube available
  • Tags: None
Press Cylinder - ML310053

Press Cylinder - ML310053

  • Drop-in replacement for MAN Roland press cylinder
  • Long life bushing and wiper seal
  • Tags: None
Pusher Cylinder on Stacker - ML 308995

Pusher Cylinder on Stacker - ML 308995

  • Extends to push finished, stacked, and banded magazines onto conveyor
  • PFTE Wear Ring provides piston support and enhances durability
  • Long life and consistent speeds
  • Tags: None
Series A, AV, HV Tie Rod Hydraulic & Pneumatic Cylinders for NFPA Cleanroom

Series A, AV, HV Tie Rod Hydraulic & Pneumatic Cylinders for NFPA Cleanroom

  • Wide range of options and sizes makes it fast and easy to select a cylinder to fit your application
  • Vacuum port
  • Special bushing to minimize particle contamination
  • Tags: None
Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder

Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder

  • Designed to provide long life in many rugged applications
  • Modified to adapt to specific clean room specifications
  • Wide range of options and sizes
  • Field repairable
  • Tags: None
Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder - Multiple MLs

Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder - Multiple MLs

  • Long life
  • Designed to provide long life in many rugged applications
  • Wide range of options and sizes
  • Working pressure ranges up to 150 psi air for Series AV and up to 1500 psi hydraulic for Series HV
  • Tags: None
Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder - Tom Thumb®

Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder - Tom Thumb®

  • Used as a knock out cylinder to form cartons, fill cases, wrap cartons, and palletize
  • Long life
  • Wide range of options and sizes
  • Tags: None
Series AV Pneumatic NFPA Cylinder for Cleanroom

Series AV Pneumatic NFPA Cylinder for Cleanroom

  • Modified to adapt to specific clean room specifications
  • Designed to provide long life in many rugged applications
  • Wide range of options and sizes
  • Vacuum port standard
  • Tags: None
Series AV Tie Rod Hydraulic & Pneumatic NFPA Cylinder

Series AV Tie Rod Hydraulic & Pneumatic NFPA Cylinder

  • Used for bag stopping
  • Drop-in replacement for Jensen units
  • Fully field repairable
  • Designed for long life
  • Tags: None
Series AV2R 4-Position Hydraulic & Pneumatic Cylinder

Series AV2R 4-Position Hydraulic & Pneumatic Cylinder

  • Drop-in replacement for FLM Rail Series units
  • 4-position cylinder
  • Fully field repairable
  • Lasts over one million cycles
  • Tags: None
Series CR Cylinder - ML311706

Series CR Cylinder - ML311706

  • Drop-in replacement for Jensen Futurail Bag Stop units
  • Bag stopping cylinder
  • Double bearing to handle side load
  • Repairable
  • Tags: None
Series CR Cylinder - ML311767

Series CR Cylinder - ML311767

  • Drop-in replacement for Jensen Towel Spreading Machine
  • Repairable
  • Designed for long life
  • Tags: None
Series CR Pneumatic Compact Cylinder

Series CR Pneumatic Compact Cylinder

  • Short cylinder length
  • Compact design where space is limited
  • Drop-in replacement for Jensen Metricon Series unit
  • Up to six switch slots for flush switch mounting
  • Tags: None
Series CRS Pneumatic Compact Cylinder

Series CRS Pneumatic Compact Cylinder

  • Compact design for applications where space is limited
  • Up to six switch slots for flush switch mounting
  • Multiple mounting options
  • Self-lubricating nitrile piston seal for long cylinder life
  • Tags: None
Series CTS Guided Pneumatic Compact Cylinder

Series CTS Guided Pneumatic Compact Cylinder

  • Compact design for applications where space is limited
  • Special piston and rod for micrometer adjustability
  • Hard-chrome plated guide shafts for anti-rotation and increased side load capacity
  • Designed for long life
  • Tags: None
Series CV Cylinder - Replacement for Automation Dynamics Bullet Sorter

Series CV Cylinder - Replacement for Automation Dynamics Bullet Sorter

  • Minimum life of 10 million trouble-free cycles
  • Repairable
  • Designed for long life
  • Tags: None
Series CV Cylinder with CNOMO Mounting for Press Lock - ML309773

Series CV Cylinder with CNOMO Mounting for Press Lock - ML309773

  • Available for 20 - 100 mm bores
  • Available with stud mounting on both ends
  • Designed for long life
  • Tags: None
Series CV Cylinder with Direct Valve Mount - ML302516

Series CV Cylinder with Direct Valve Mount - ML302516

  • Valve directly mounted for high speed actuation
  • Provides rapid repeatable ejection function
  • Long life
  • Tags: None
Series CV Cylinder with Rodlock for Tire Load/Unload

Series CV Cylinder with Rodlock for Tire Load/Unload

  • Used in loading and unloading of tires into the press
  • ISO / VDMA interchange for easy mounting
  • Rodlok option for easy and dependable locking of piston rod
  • Also used in ply application and tread server in tire build
  • Tags: None
Series CV Cylinder with Trunnion Mount for Tire Transfer - ML307067

Series CV Cylinder with Trunnion Mount for Tire Transfer - ML307067

  • Front or rear trunnion mounting available on all CV sizes
  • Built in shock pads
  • Cushions available
  • Corrosion resistance available
  • Tags: None
Series CV ISO/VDMA Pneumatic Cylinder

Series CV ISO/VDMA Pneumatic Cylinder

  • May be used for performing pallet turns
  • Many options available
  • ISO and VDMA standardized
  • Long life
  • Tags: None
Series CV Pneumatic ISO Cylinder

Series CV Pneumatic ISO Cylinder

  • SO/VDMA interchange for easy mounting (metric unit)
  • Quiet operation
  • Conforms to ISO 6432, 6431 and VDMA 24562 specifications
  • ISO/VDMA interchange for easy mounting (metric unit)
  • Tags: None
Series CV Pneumatic ISO Cylinder with Rodlock

Series CV Pneumatic ISO Cylinder with Rodlock

  • Locks the piston rod while in a stationary position
  • ISO/VDMA interchange for easy mounting (metric unit)
  • PTFE wear ring and built-in shock pads for long cylinder life
  • Polymer rod bearing
  • Tags: None
Series ECP Ingress Protected Electric Cylinder

Series ECP Ingress Protected Electric Cylinder

  • IP69K with stainless steel components for food grade washdown environments
  • Made with food grade compliant materials and lubricants
  • Rotating and non-rotating rod options
  • Tags: None
Series ECV Ball Screw Electric Cylinder

Series ECV Ball Screw Electric Cylinder

  • ECVA provides a non-rotating rod design, and the ECVR features a rotating rod for applications where rod rotation is prevented by the attached load or tooling
  • Rigid construction, high degree of repeatability, and high precision ball screw assemblies
  • Your Motor Your Way for online configuration of motor mounting plates
  • Tags: None
Series HV Cylinder for Mixing Machine

Series HV Cylinder for Mixing Machine

  • Use on Banbury® mixing machine - dust ring stop
  • Long life design for low maintenance
  • NFPA standard mounting for 3/4" and 1"
  • Tags: None
Series OCK Clamping Cylinder

Series OCK Clamping Cylinder

  • Standard flow controls for easy speed adjustment
  • Standard magnet for sensing capabilities
  • Multiple port locations for installation flexibility
  • Mounting matches global standard
  • Tags: None
Series OCV Pneumatic ISO Cylinder

Series OCV Pneumatic ISO Cylinder

  • Available in 32, 40, and 50 mm bore sizes, stroke lengths available in 25, 50, 100, and 200 mm
  • Cushion controls reduce impact at end of stroke
  • ISO mounting simplifies installation and provides interchangeability
  • Tags: None
Series PSP Pneumatic Shot Pin Cylinder

Series PSP Pneumatic Shot Pin Cylinder

  • Adjustable bearing system can be used to make worn-in units "like new"
  • Internal porting and shock absorption eliminates the need to adjust cushions or flow controls
  • Superior off-center part locating and positioning
  • Tags: None
Series TD Air/Oil Tandem Tie Rod Cylinder

Series TD Air/Oil Tandem Tie Rod Cylinder

  • Precise speed control operation at low velocities
  • Long life design for low maintenance
  • NFPA repairable for extended life
  • Tags: None
Side Loader Hydraulic Shot Pin - ML312116

Side Loader Hydraulic Shot Pin - ML312116

  • Drop-in replacement for Ellis units
  • Field repairable
  • Designed for long life
  • Tags: None
Slide Gate Cylinder for Conveying - ML302550

Slide Gate Cylinder for Conveying - ML302550

  • Used to open and close sliding gate on hopper
  • Drop-in replacement to existing competitor unit
  • Direct drop-in to existing competitor unit
  • Smooth deceleration and quite operation
  • Tags: None
Specialty Surgery Tool Cylinder - ML310635

Specialty Surgery Tool Cylinder - ML310635

  • Special piston and rod for micrometer adjustability
  • Designed for long life
  • Non-rotating rod
  • Used for highly accurate measurements in surgery
  • Tags: None
Stopping Cylinder - ML306554

Stopping Cylinder - ML306554

  • Drop-in replacement for Bosch units
  • Spring and button kit available
  • Through-hole mounting
  • Tags: None
Tunnel Drain Cylinder - ML312043

Tunnel Drain Cylinder - ML312043

  • Drop-in replacement for Milnor 63 x 4.5 units
  • Repairable
  • Special coated head
  • Tags: None
Tunnel Drain Cylinder - ML312118

Tunnel Drain Cylinder - ML312118

  • Drop-in replacement for Milnor 63 x 5.75 units
  • Repairable
  • Special coated head
  • Tags: None
Unique Cylinder - ML305422

Unique Cylinder - ML305422

  • Low breakaway
  • Customer-specified tool plate configuation
  • Tags: None
Universal Blanket Wash Cylinder - ML311719

Universal Blanket Wash Cylinder - ML311719

  • Universal mounting holes
  • Rod can be on either side
  • Long life seals and bushings
  • Tags: None
Variable Pick Head - ML306008

Variable Pick Head - ML306008

  • Ideal for final packaging process
  • Motor driven pitch
  • Pneumatically-driven vertical slides
  • Tags: None
Water Cylinder for Press Lift - ML310536

Water Cylinder for Press Lift - ML310536

  • Longer life than competitor units
  • Piston wear band to maximize piston seal life
  • Double rod seal to prevent leakage
  • Stainless steel construction to prevent corrosion
  • Tags: None

Contact Us

9009 Clubridge Drive
Fort Wayne, IN 46809

Stay Connected

Subscribe to PHD News

2023 © PHD Inc. All Rights Reserved | Terms of Service

Sitemap
