Blind Finger Pin Clamp
Blind Finger Series PLK Pin Clamp - C6177
  • Finger comes out on one side of the pin - no cut out on the back side
  • Enclosed pin prevents contamination
  • Will not damage aluminum panel on back side opposite of finger


  • Tags: None

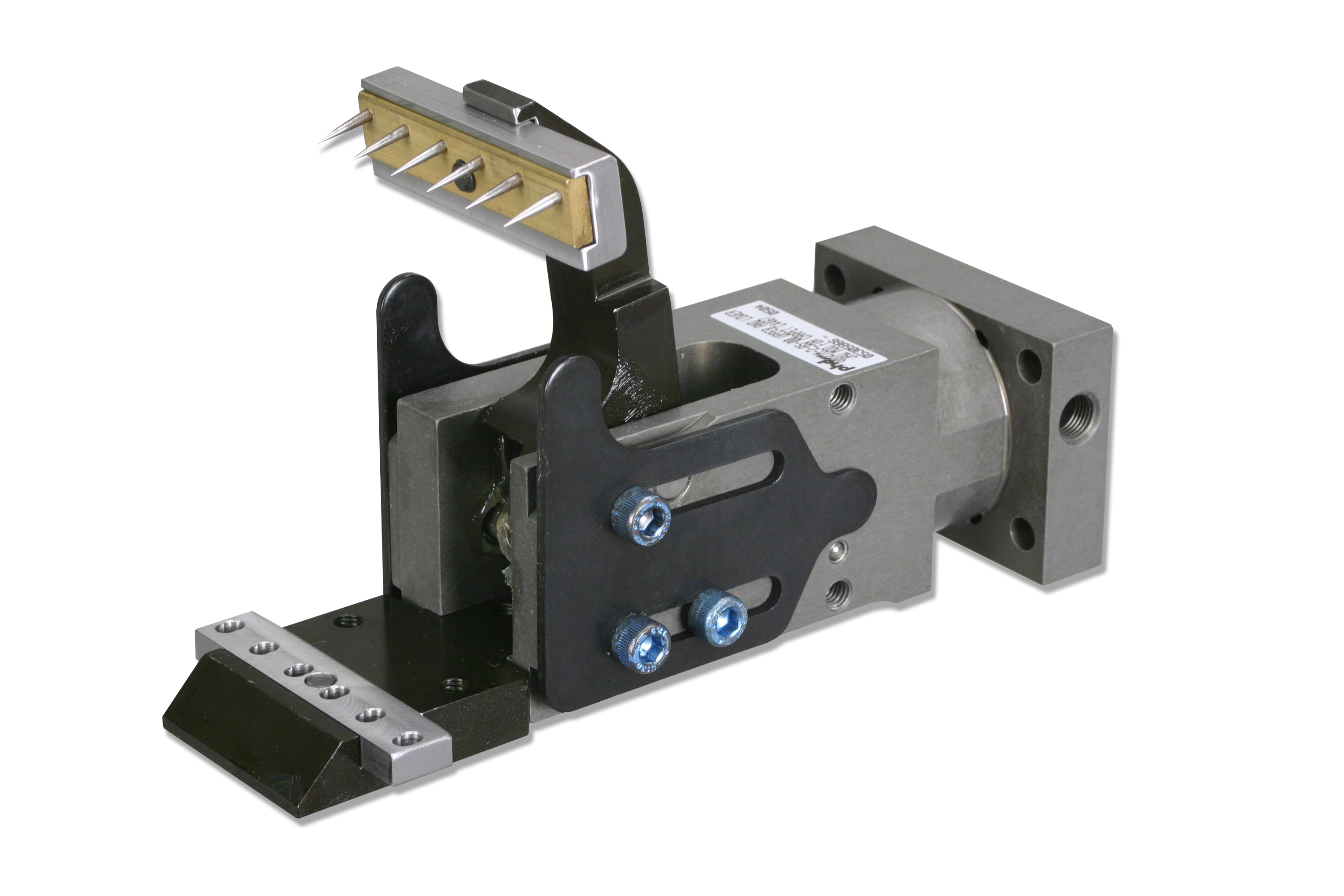

Carpet Stretching and Molding Clamp
Carpet Stretching and Molding Clamp - C4511
  • Simple design, long life, high clamp force, and fast field maintenance
  • Multiple jaw configurations and tips are available to fit your applications requirements
  • The jaws of the Series GRM Clamp lock in the closed position ensuring part retention if air pressure is lost due to line rupture or power loss


  • Tags: None
High Temperature Clamp
High Temperature Clamp - C4225
  • High performance at 250°F (121°C)
  • Spring close, pneumatic open
  • Special seals and lube protect clamp from elevated temperature
  • Elongated tips for part stability


  • Tags: None
High Temperature Clamp
High Temperature Clamp - C4556
  • High performance at temps exceeding 1700°F (927°C)
  • Rear manifold moves plumbing away from heat source
  • Heat dissipating shields minimize radiant heat
  • Specially coated tips to reflect heat


  • Tags: None
Series GRM Clamp with High Temperature Options
Series GRM Clamp with High Temperature Options
  • Superior delivery
  • Seals and lube rated to 200°C (392°F)
  • Ceramic coated tips minimize thermal transfer


  • Tags: None
Series GRM Pneumatic Workholding Clamp
Series GRM Pneumatic Workholding Clamp
  • Highly modular design for countless configurations
  • Simple design, long life, and high clamp force
  • Ideal for sheet metal handling
  • Jaws lock in the closed position to ensure part retention


  • Tags: None
Series GRM1 Miniature Pneumatic Workholding Clamp
Series GRM1 Miniature Pneumatic Workholding Clamp
  • Miniature size design
  • Generates up to 225 lb [1000 N] of total clamp force
  • Used to clamp sheet metal
  • Simple design, long life, and high clamp force


  • Tags: None
Series PA Pneumatic Swing Clamp
Series PA Pneumatic Swing Clamp
  • Compact and available in 5 sizes
  • Three-ball helix design distributes external loads
  • Used to hold components together for a robotic welding process
  • Left and right rotations


  • Tags: None
Series PB Versatile Pneumatic Swing Clamp
Series PB Versatile Pneumatic Swing Clamp
  • Available in 25 to 50mm bores
  • Used to fixture components together in robotic welding applications
  • Ideal for part transfer
  • Ideal for part holding or transfer


  • Tags: None
Series PEC Pneumatic Toggle Clamp
Series PEC Pneumatic Toggle Clamp
  • Widest clamp force range in the industry
  • Used to fixture and hold parts together in high speed robotic welding applications
  • Manual release of clamp is achieved by using common tools without removing plugs while providing contamination resistance
  • Constant clamp force compared to toggle designs


  • Tags: None
Series PFC Pneumatic Frame Clamp
Series PFC Pneumatic Frame Clamp
  • Long or wide jaws for design flexibility
  • Constant clamping force over wide range
  • Optional weld covers for protection


  • Tags: None
Series PFC Pneumatic Frame Clamp - Mongo
Series PFC Pneumatic Frame Clamp - Mongo
  • Up to 52,000 lbs of total clamp force
  • High-force forming clamp
  • Long jaw travel positioning clamp
  • Ideal for large part applications


  • Tags: None
Series PLC Robust Pneumatic Pin Clamp
Series PLC Robust Pneumatic Pin Clamp
  • Rugged design for harsh applications
  • Multiple pin diameters available
  • Enclosed finger design superior to competitive models


  • Tags: None
Series PLK Versatile Pneumatic Pin Clamp
Series PLK Versatile Pneumatic Pin Clamp
  • One actuator locates and holds part simultaneously
  • Ideal for applications where pins are required to locate parts and securely hold
  • Enclosed finger design minimizes costly down time
  • Completely enclosed finger/pin protects against weld slag and contamination


  • Tags: None
Series PLKD Pneumatic Disappearing Pin Clamp
Series PLKD Pneumatic Disappearing Pin Clamp
  • Main pin retracts fully into part support for easy part removal
  • Standard pin diameters from 12.5 to 24.5mm
  • Fingers may extend and retract independently of the main pin


  • Tags: None

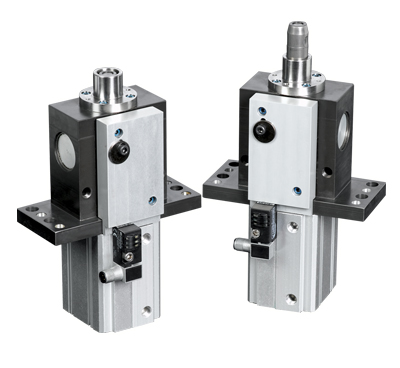

Series PLKD Versatile Pneumatic Disappearing Pin Clamp
Series PLKD Versatile Pneumatic Disappearing Pin Clamp
  • Ideal for applications where pins are required to locate parts and securely hold
  • Completely enclosed finger/pin protects against weld slag and contamination
  • Main pin retracts fully into part support for easy part removal


  • Tags: None
Series PNC Pneumatic Identification Stamping Clamp
Series PNC Pneumatic Identification Stamping Clamp
  • Cost effective solution to comparable products
  • Quiet operation
  • Up to 26,000 pounds of total clamp force
  • Stamps characters into draw quality steel


  • Tags: None

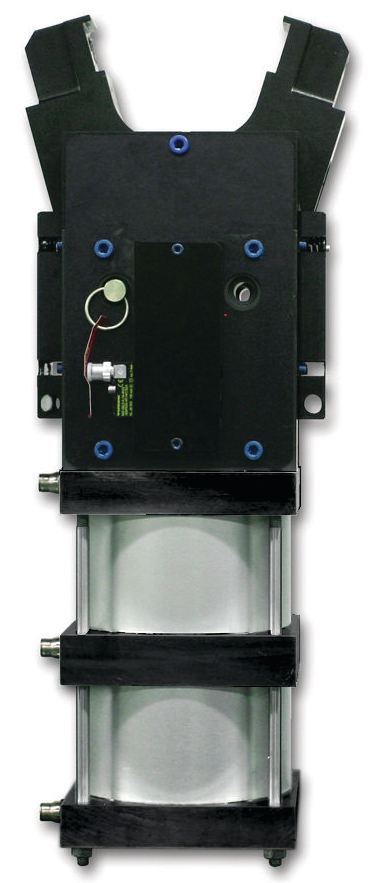

Series PNC Pneumatic Identification Stamping Clamp - Mongo
Series PNC Pneumatic Identification Stamping Clamp - Mongo
  • Up to 60,000 lbs of total clamp force
  • Stamping and crimping opportunities for many material types
  • Economical solution to comparable hydraulic and laser marking systems


  • Tags: None

Select another Process or Product Type.
No products for this combination of filters at this time.

Resources

None Available

What is an ML or C number?

An ML or C number is given to a special unit at PHD that was uniquely made to our customer’s specifications. PHD is proud to offer our customers variations of our standard product range. Whatever your application, PHD is likely to have your solution already in our database of over 35,000 MLs!

Do you have an application with a specific need?

For assistance in building your unique solution and to obtain a quote, please contact us.
