Battery Manufacturing Equipment

Battery Manufacturing Equipment - PHD understands that dry rooms must meet or exceed the stringent requirements for lithium ion battery manufacturing. That’s why we developed a number of products that have proven to perform at optimum levels while in your dry room production. Many of our products have been thoroughly tested in our dry room chamber with controlled humidity levels of the ambient and actuated air that match or exceed industry dry room specifications.


Process Type:
Product Type:

Series 1000-8000 Heavy Duty Pneumatic & Hydraulic Rotary Actuator
Series 1000-8000 Heavy Duty Pneumatic & Hydraulic Rotary Actuator
  • Heavy duty with a versatile design
  • Wide variety of options and accessories
  • High torque


  • Tags: "Rotary Actuators" "Battery Plate Transferring"
Series 190/191 Micro Parallel Pneumatic Gripper
Series 190/191 Micro Parallel Pneumatic Gripper
  • Compact size ideal for handling small parts in confined areas
  • Rugged jaw and body construction
  • Available in four sizes, two jaw styles, two jaw travels, and mounting holes on one face, or three faces for maximum application versatility


  • Tags: "Testing/Tranferring" "Hand-Off Assembling" "Grippers"
Series 8400 Micro Pneumatic Angular Gripper
Series 8400 Micro Pneumatic Angular Gripper
  • Features a compact design for handling small parts in confined areas
  • Rugged jaw and body construction
  • Close tolerance jaw mechanism minimizes jaw play and dowel pin holes allow precise positioning of tooling


  • Tags: "Testing/Tranferring" "Hand-Off Assembling" "Grippers"

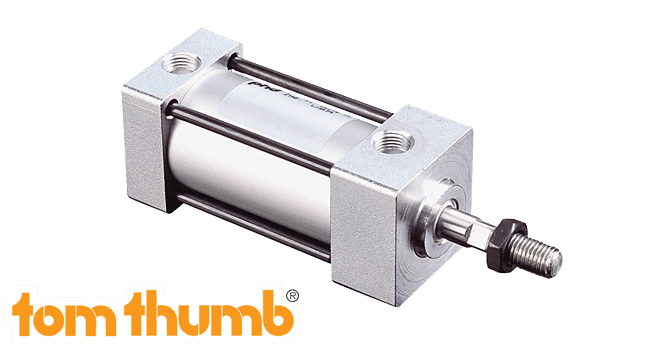

Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder
Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder
  • Modified to adapt to specific clean room specifications
  • Designed to provide long life in many rugged applications
  • Wide range of options and sizes


  • Tags: "Shuttle Loading" "Hand-Off Assembling" "Cylinders"
Series CR Pneumatic Compact Cylinder
Series CR Pneumatic Compact Cylinder
  • Short cylinder length
  • Up to six switch slots for flush switch mounting
  • Long life piston seal for long cylinder life
  • Multiple mounting options


  • Tags: "Testing/Tranferring" "Pressing" "Hand-Off Assembling" "Cylinders"

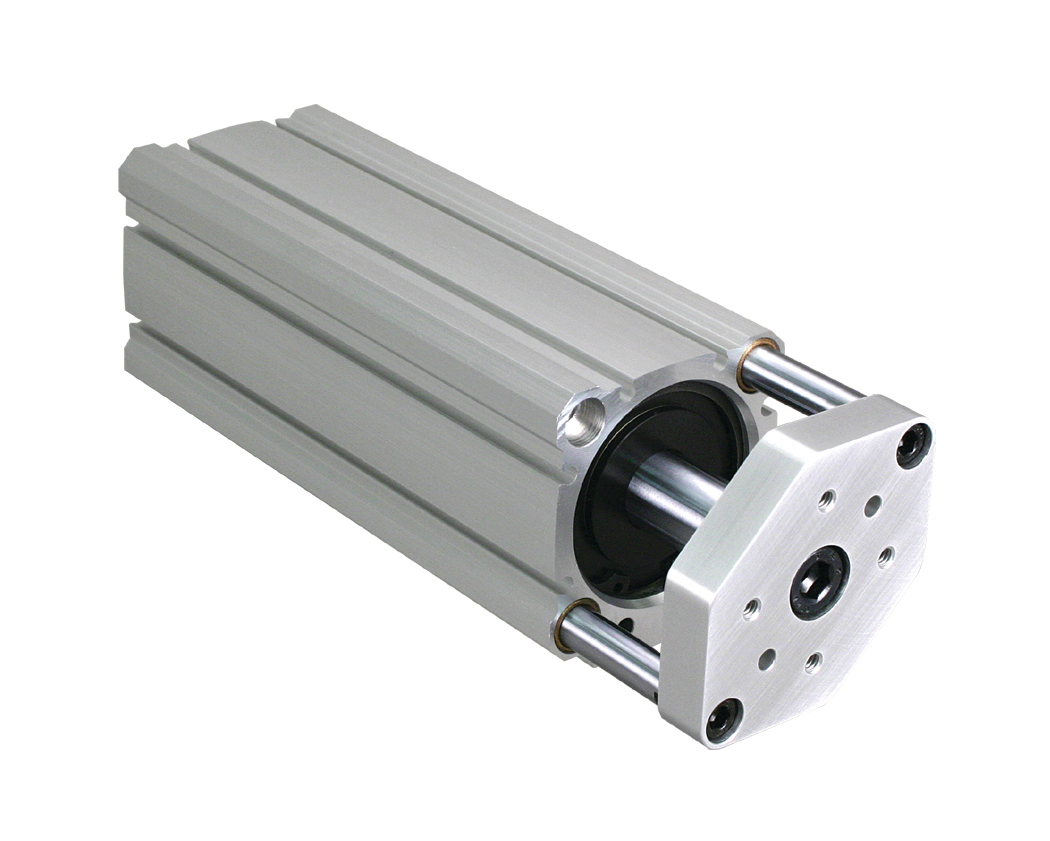

Series CTS Guided Pneumatic Compact Cylinder
Series CTS Guided Pneumatic Compact Cylinder
  • Compact design for applications where space is limited
  • Hard chrome plated guide shafts for anti-rotation and increased side load capacity
  • Oil-impregnated bronze bushings for long cylinder life


  • Tags: "Testing/Tranferring" "Shuttle Loading" "Pressing" "Cylinders"
Series CV Pneumatic ISO Cylinder
Series CV Pneumatic ISO Cylinder
  • Quiet operation
  • Higher velocity and higher kinetic energy absorption
  • Multi-purpose impact seals and urethane seals
  • Longer nose bushings
  • Polymer rod bearing


  • Tags: "Testing/Tranferring" "Shuttle Loading" "Pressing" "Cylinders"
Series ECV Ball Screw Electric Cylinder
Series ECV Ball Screw Electric Cylinder
  • ECVA provides a non-rotating rod design, and the ECVR features a rotating rod for applications where rod rotation is prevented by the attached load or tooling
  • Rigid construction, high degree of repeatability, and high precision ball screw assemblies
  • Your Motor Your Way for online configuration of motor mounting plates


  • Tags: "Cylinders" "Battery Plate Transferring"
Series GRA Parallel Pneumatic Micro Gripper
Series GRA Parallel Pneumatic Micro Gripper
  • Compact size
  • Manifold porting
  • Internal speed control


  • Tags: "Testing/Tranferring" "Grippers"

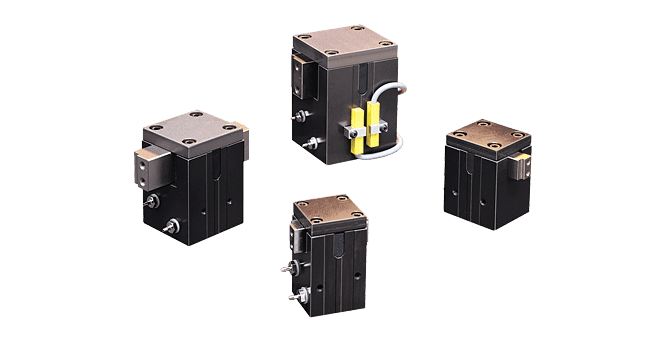

Series GRD Parallel Pneumatic Miniature Gripper
Series GRD Parallel Pneumatic Miniature Gripper
  • Very high grip force to weight ratio for efficient use of space and power
  • Fully field-repairable
  • True parallel jaw travel for easy tooling design


  • Tags: "Testing/Tranferring" "Hand-Off Assembling" "Grippers"
Series GRH Parallel Pneumatic Long Travel Gripper
Series GRH Parallel Pneumatic Long Travel Gripper
  • Corrosion-resistant and robust construction ensures long operating life
  • Dual bore provides higher total grip force
  • Extended support guide system with wide slot jaws minimizes tooling deflection when gripping


  • Tags: "Testing/Tranferring" "Hand-Off Assembling" "Grippers"
Series GRK Parallel Pneumatic Heavy Duty Gripper
Series GRK Parallel Pneumatic Heavy Duty Gripper
  • Compact, low profile design provides high grip force and large moment capacities with low overall weight
  • True parallel jaw motion simplifies jaw tooling and is ideal for centering parts of various sizes
  • Two grip force/jaw travel combinations available for each size
  • Wear compensation jaw guide system


  • Tags: "Hand-Off Assembling" "Grippers" "Battery Plate Transferring"
Series GRV Angular Pneumatic Micro Gripper
Series GRV Angular Pneumatic Micro Gripper
  • Robust construction to ensure long operating life
  • Precision dowel pin holes ensure accurate alignment of tooling and gripper mounting
  • Standard internal speed control with no external flow control required


  • Tags: "Testing/Tranferring" "Grippers"
Series GRW Wide Body Pneumatic Parallel Gripper
Series GRW Wide Body Pneumatic Parallel Gripper
  • Large diameter jaw guides provide superior jaw stability and high moment capacities
  • Optional manifold porting available on either of the two standard mounting surfaces
  • Fully field-repairable and in available in five sizes, both imperial and metric versions


  • Tags: "Testing/Tranferring" "Grippers"

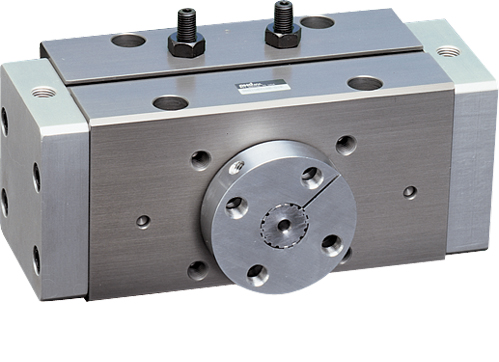

Series RA High Load Pneumatic Rotary Actuator
Series RA High Load Pneumatic Rotary Actuator
  • Full featured rotary
  • High axial and radial bearing loads
  • Zero backlash at ends of rotation


  • Tags: "Rotary Actuators" "Battery Plate Transferring"
Series RIS High Force Pneumatic Rotary Actuator
Series RIS High Force Pneumatic Rotary Actuator
  • High torque
  • High axial and radial bearing load
  • Thru hole shaft for built-in air communication ports


  • Tags: "Rotary Actuators" "Battery Plate Transferring"
Series RL Compact Pneumatic Rotary Actuator
Series RL Compact Pneumatic Rotary Actuator
  • Low cost OEM style rotary
  • High axial and radial bearing load
  • High torque/package size


  • Tags: "Rotary Actuators" "Battery Plate Transferring"

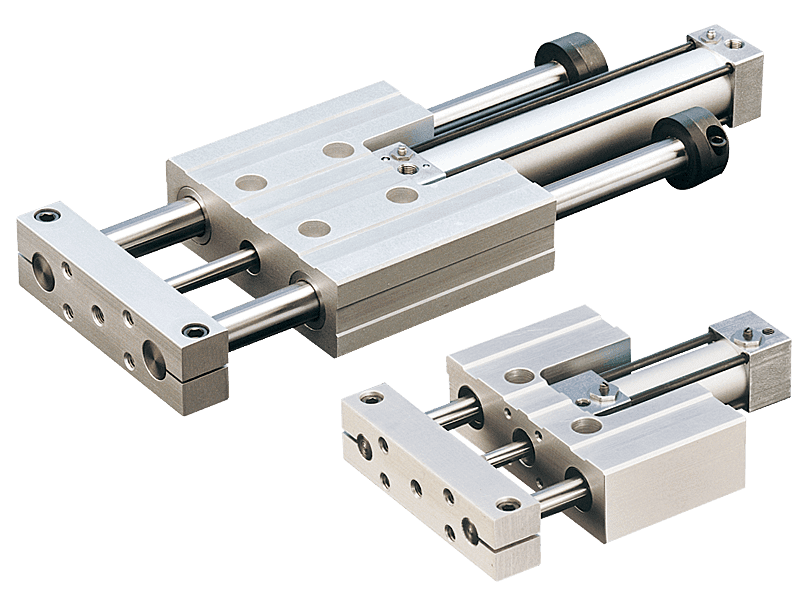

Series SD/SE Versatile Thruster Pneumatic Slide
Series SD/SE Versatile Thruster Pneumatic Slide
  • Offered in short or long body in five bore sizes
  • Available with standard or oversize shafts
  • Standard dowel pin holes for ease of mounting


  • Tags: "Testing/Tranferring" "Shuttle Loading" "Hand-Off Assembling" "Battery Plate Transferring"
Series SFM Multi-Position Rodless Gantry Rail Pneumatic Slide
Series SFM Multi-Position Rodless Gantry Rail Pneumatic Slide
  • Modular multi-position stop system includes optional mid-stop actuator and adjustable end stop to support diverse applications
  • Multiple intermediate stopping positions are available, limited only by the length of the slide
  • Ground rail technology


  • Tags: "Slides" "Battery Plate Transferring"
Series SFP Rodless Gantry Rail Pneumatic Slide
Series SFP Rodless Gantry Rail Pneumatic Slide
  • Long travel lengths
  • Space-saving design
  • High load capacity, very low deflection
  • Interanl ground rail technology


  • Tags: "Testing/Tranferring" "Slides" "Shuttle Loading" "Pressing" "Hand-Off Assembling" "Battery Plate Transferring"
Series SK/SL Robust Versatile Thruster Pneumatic Slide
Series SK/SL Robust Versatile Thruster Pneumatic Slide
  • Offered in short or long body with five bore sizes
  • Available with standard or oversize shafts
  • Standard dowel pin holes for ease of mounting
  • Choice of bearings


  • Tags: "Testing/Tranferring" "Slides" "Shuttle Loading" "Pressing" "Hand-Off Assembling" "Battery Plate Transferring"
Series STP Compact Rail Thruster Pneumatic Slide
Series STP Compact Rail Thruster Pneumatic Slide
  • Smooth, precise linear motion
  • High capacity
  • Dual bore for added loaded capability
  • Ground rail technology


  • Tags: "Testing/Tranferring" "Slides" "Shuttle Loading" "Pressing" "Hand-Off Assembling" "Battery Plate Transferring"
Series SxL/SxH Compact Thruster Pneumatic Slide
Series SxL/SxH Compact Thruster Pneumatic Slide
  • 9 bore sizes
  • Corrosion-resistant options
  • Twin switch slots for flush switch mounting


  • Tags: "Testing/Tranferring" "Slides" "Shuttle Loading" "Hand-Off Assembling" "Battery Plate Transferring"

Select another Process or Product Type.
No products for this combination of filters at this time.

Resources

What is an ML or C number?

An ML or C number is given to a special unit at PHD that was uniquely made to our customer’s specifications. PHD is proud to offer our customers variations of our standard product range. Whatever your application, PHD is likely to have your solution already in our database of over 35,000 MLs!

Do you have an application with a specific need?

For assistance in building your unique solution and to obtain a quote, please contact us.
